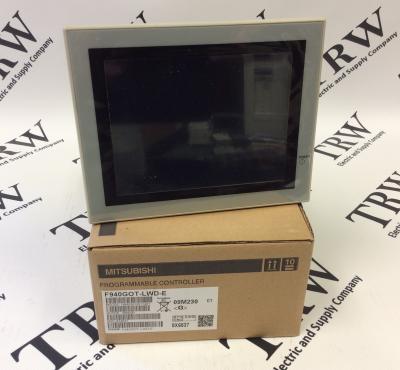

F940GOT-LWD-E
F940GOT-LWD-E is
In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- F900GOT Operator Interface with a Touchscreen (F940GOTLWDE)
- Manufacturer: Mitsubishi
- Series: F900GOT
Product Description
The Mitsubishi F940GOT-LWD-E (F940GOTLWDE) is a F900GOT series operator interface with a touchscreen. This operator interface data memory is built-in at 512kB. The front panel touchscreen dimensions are (height times width) 130mm by 162mm (5.12in by 6.38in). The effective display based on a diagonal measurement is 5.7 inches, and its height times width measurement is 86mm by 115mm (3.39in by 4.53in). The resolution of the F940GOT-LWD-E touchscreen is 320 x 240 dots, fitting 40 characters per line on 15 lines. This operator interface display can have a life of 50,000 hours or more as long as working temperatures remain around a stable 25°C (77°F).The F940GOT-LWD-E operator interface with a touchscreen has a current consumption of 390mA/24VDC and it is able to withstand the voltage of 500VAC for one minute. The insulation resistance for this touchscreen is 5MΩ. There is an incorporated battery compartment for the PM-20BL battery. The F940GOT-LWD-E has two built-in interfaces, a RS-422 and a RS-232C interface which permits the touchscreen operator interface to connect to many PLCs from the following series: the Melsec-F FX, the MELSEC A, the Melsec-QnA, and the Melsec-Q series and the FREQROL series inverter.
The F940GOT-LWD-E operator interface has an enclosure rating of IP65F for the front panel. This enclosure rating denotes that this product is entirely protected from impinging dust and from direct water exposure from low-pressured jets. In addition to this, the touchscreen is protected from oil complicity. The ambient temperatures of the F940GOT-LWD-E should be between "0-50 degrees Celsius (32-122 degrees Fahrenheit)" to maintain efficiency in operation.
Here is the source material referenced:
https://dl.mitsubishielectric.com/dl/fa/document/manual/got/jy992d94201/jy992d94201e.pdf
https://www.enclosurecompany.com/ip-ratings-explained.php
Technical Specifications
Part Number: F940GOT-LWD-E (F940GOTLWDE)Module Type: Operator Interface with a Touchscreen
Screen Dimensions: 86mm by 115mm (3.39in by 4.53in)
Screen Resolution: 320 x 240 dots
Voltage: 24VDC
Weight: 5lbs (Approx.)
Related Parts
F943GOT-LWD - Mitsubishi Operator InterfaceMR-J4-100B - Mitsubishi Melservo MR-J4 Servo Amplifier
HC-UFS72K - Mitsubishi Melservo HC Servo Motor with KEY
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi F900GOT Shipping options vary by location. Call for an accurate quote.
Warranty
- The Mitsubishi F940GOT-LWD-E comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
