E1063
E1063 is
Available
Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details
- E1000 Touchscreen Operator Interface STN-LCD (E-1063)
- Manufacturer: Mitsubishi
- Series: E1000
Product Description

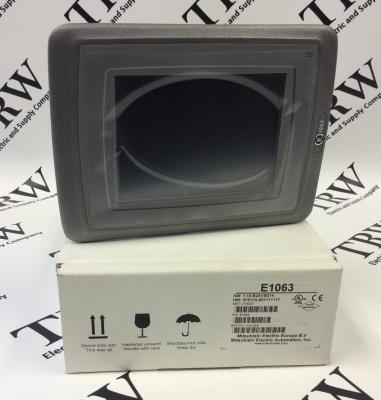

The Beijer E1063 (E-1063) is a E1000 series touchscreen operator interface with a transmissive monochrome STN-LCD display. The operator interface has a touchscreen display that does not require as much power as others. The STN-LCD (Super Twisted Nematic Liquid Crystal Display) is a monochrome display which creates a sharp contrast by using the basic colors of a yellow and green and a blue and gray. The display on the E1063 is pixelated with 320 by 240 pixels. On the touchscreen is polyester on glass and an overlay of Autotex F157/F207. The autotex has a fine finish with 7-series ink primer and a gauge if 150/200µm and the reverse side is made of a powder-coated aluminum material. The front panel is given a seal protection with a rate of IP66. This enclosure rate means that the panel is entirely dust tight and is protected from direct hits from a high pressure jet.The dimensions of the E1063 touchscreen operator interface panel is 5.7in measured diagonally. The front panel has a size of 202mm by 152mm by 6mm (7.95in by 5.98in by 0.24in). The screen area of the panel is 115.2mm by 86.4mm (4.54in by 3.4in).
On the E1063 are two serial ports. There is a 25-pin RS-422/RS-485 and a 9-pin RS-232C. The touchscreen operator interface panel is able to connect with these ports to an Ethernet communication using a shielded RJ45 cable or a USB cable with a host type A which is a USB 1.1. The maximum output current that this cable may have is 0.5 Amp.
Here is the source material referenced:
https://www.avinasanat.com/wp-content/uploads/products/E1000-Series_ServiceMaintenance_MA00758A.pdf
https://www.mewdevenezuela.com/productos/descargasProductos/E1000_Models_DataSheet.pdf
https://www.enclosurecompany.com/ip-ratings-explained.php
http://autotype.macdermid.com/upload/documents/autotex.pdf
https://focuslcds.com/journals/lcd-modules-are-available-in-3-options-tn-stn-and-fstn-lcd/
Technical Specifications
Part Number: E1063 (E-1063)Module Type: Operator Interface
Touchscreen Panel Size: 5.7 inch
STN-LCD (Super Twisted Nematic Liquid Crystal Display)
Pixels: 320 X 240 Pixels
Weight: 1.98lb (0.9kg)
Storage: 12MB
Related Parts
A1NCPU - Mitsubishi A Series CPUs Control ModuleA0J2HCPU - Mitsubishi A Series CPUs A0J2 Controller
A4UCPU - Mitsubishi INPUT OUTPUT Controller
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Mitsubishi E1000 Shipping options vary by location. Call for an accurate quote.
Warranty
- The Mitsubishi E1063 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
TRW Electric & Supply Company is a global automation supplier. We deliver reliable new and refurbished parts at a great value. Our product focus is Omron and Mitsubishi products, but we have been able to provide our customers with solutions from other manufacturers as well. Our goal is to supply the automation industry with the best service and pricing, and of course conduct business with a high level of integrity.
A Mitsubishi Authorized Distributor for E1000 is not the only source for Mitsubishi products. Many of the Mitsubishi products have been discontinued and therefore are no longer available from authorized suppliers. TRW Electric & Supply has many new and refurbished Mitsubishi E1000 parts available for purchase.
