E1043


Part Number - E1043

E1043 is


Available


Contact us to place an order or request a quote:

1-800-479-8084 | sales@trwsupply.com



Rate the E1043
4.0/5 on 2 reviews


Product Details

  • E1000 MONOCHROME TOUCHSCREEN DISPLAY (E-1043)
  • Manufacturer: Mitsubishi
  • Series: E1000

Product Description

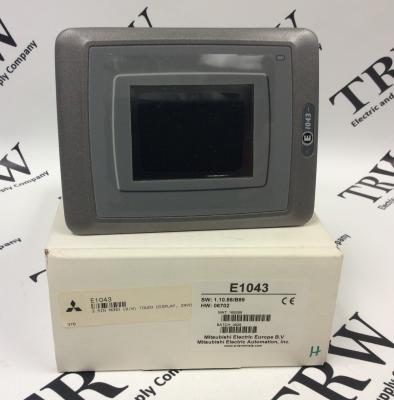

The Beijer E1043 (E-1043) is a touchscreen operated panel from E1000 series. The display of this touchscreen is made with TFT-LCD. TFT is a type of Liquid Crystal Display (LCD), but it also has a Thin Film Transistor (TFT) appended to each individual pixel. The display has 320 by 240 pixels and 16 greyscales.

The E1043 has two ports that are both serial ports. The first on is a 9-pin RS-232C port, the other is a 25-pin RS-422/RS-485. These ports can connect to a USB cable whose maximum output current it 0.5A and to an Ethernet system by using a shielded RJ45 connector.

The touchscreen of the E1043 is made of glass with polyester over it so that this panel may handle up to one million finger operations. The overlay of the panel is made from Autotex F157/F207. Both the F157 and the F207 have a fine finishing and a 7-series ink primer. The overlays differ by the former having a gauge of 150µm while the latter has a gauge of 200µm. The reverse side is varnished by powder-coated aluminum. The front panel is sealed by a protective covering with the rating of IP66. This rating insulates the E1043 panel from any ingress of dust. Also, this rating signifies that the panel will also be unharmed by direct spurts from a high pressure jets. The rear panel is sealed with an IP rating of IP20, protecting the panel from finger or small object contact. The screen’s active display area is 70.1mm by 52.6mm (2.56in by 2.07in).

Here is the source material referenced:
https://www.avinasanat.com/wp-content/uploads/products/E1000-Series_ServiceMaintenance_MA00758A.pdf;
https://www.mewdevenezuela.com/productos/descargasProductos/E1000_Models_DataSheet.pdf;
https://www.enclosurecompany.com/ip-ratings-explained.php;
https://www.lifewire.com/what-is-tft-lcd-578664;
http://autotype.macdermid.com/upload/documents/autotex.pdf


Technical Specifications

Part Number: E1043 (E-1043)
Module Type: Touchscreen Operated Panel
Weight: 1.32lbs (0.6kg)
Pixels: 320 x 240
Screen size: 3.5in
Storage: 12MB



Shipping and Order Information

  • TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
  • Mitsubishi E1000 Shipping options vary by location. Call for an accurate quote.

Warranty

  • The Mitsubishi E1043 comes with a two year warranty.
  • A three year warranty is available. Please inquire for pricing.
