MS-IOM4711-0
MS-IOM4711-0 is
In Stock Ships Today!In Stock Ships Today!In Stock Ships Today!Contact us to place an order or request a quote:
1-800-479-8084 | sales@trwsupply.comProduct Details

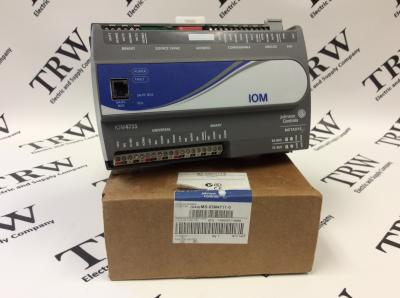

- Metasys MS Input Output Control Module (MSIOM47110)
- Manufacturer: Johnson Controls
- Series: Metasys MS
Product Description
The Johnson Controls MS-IOM4711-0 (MSIOM47110) is a Metasys MS series input output control module. This control module has a voltage of 24VAC, but this is only titular, because it is permitted to range from 20 to 30VAC. The frequency is 50/60Hz. The power consumption is at the most 14VA. The MS-IOM4711-0 control module’s flash memory is 512KB and its RAM is 128KB.There are 17 I/O points on the MS-IOM4711-0 control module. They are the universal inputs, binary inputs, binary outputs, configurable outputs, and analog outputs. Their initials will be used instead of their full names in the following. The UI of the MS-IOM4711-0 control module has a voltage which ambits 0 to 10VDC, the BO has a voltage of 24VAC, CO deploys the same voltages as both the foregoing, and AO has the same voltage range as the UI. Concerning the point’s current, both the AO and the UI can have currents of 4 to 20mA. The UI may also have a resistance of 0 to 600k ohms. The MS-IOM4711-0 control module’s UI and BI may also facilitate contact that is made by its binary nature.
When mounting the MS-IOM4711-0 control module, a DIN rail may be used, or the control module may be simply mounted with screws to a suitable area. If a DIN rail is used, it must be 35mm. All mounting on the DIN rail must be done horizontally. When it is mounted onto the DIN rail, the MS-IOM4711-0 control module may be slid onto the rail and secured into place.
Here are the source material that may have been referenced:
https://docs.johnsoncontrols.com/bas/api/khub/documents/eMp3Sl_dFgkB93Nd88k0dw/content;
https://cgproducts.johnsoncontrols.com/MET_PDF/241014492.pdf
Technical Specifications
Part Number: MS-IOM4711-0 (MSIOM47110)Module Type: Input Output Control Module
Voltage/Frequency: 24VAC, 50/60Hz
Weight: 1.1lbs (0.5kg)
Shipping and Order Information
- TRW Supply can usually ship in stock items same day before 3:30 PM EST for no extra cost and before 5 PM with a rush fee
- Johnson Controls Metasys MS Shipping options vary by location. Call for an accurate quote.
Warranty
- The Johnson Controls MS-IOM4711-0 comes with a two year warranty.
- A three year warranty is available. Please inquire for pricing.
